LED WASH WALL LAMP Series

Description

PRODUCT TECHNICAL PARAMETERS

Model: CT-XQ-2525-12W
Light source: OSRAM、PHILIPS、CREE
Conventional power: 12W
Lamp size: L1000xW25xH25mm
Voltage: DC24V
Lamp life: 50000H
color: 2000K/3000K/4000K/6000K/RGB/RGBW
Colour effect: fullcolour, monochrome
Control mode: International standard DMX512
Protection grade: IP66
Environment temperature: -30C-+50C
Light angle: 30°/45°/10*60°/15*45°

Surface treatment: UV-resistant polyester powder, outdoor grade spray
Lamp material: Aluminum alloy body, 4mm tempered glass cover, IP67 waterproof, stainless steel screws
Applications: Wall-washing lighting for building exteriors, bridges, billboards, green landscapes, buildings, bars, dance halls, etc.

PRODUCT TECHNICAL PARAMETERS

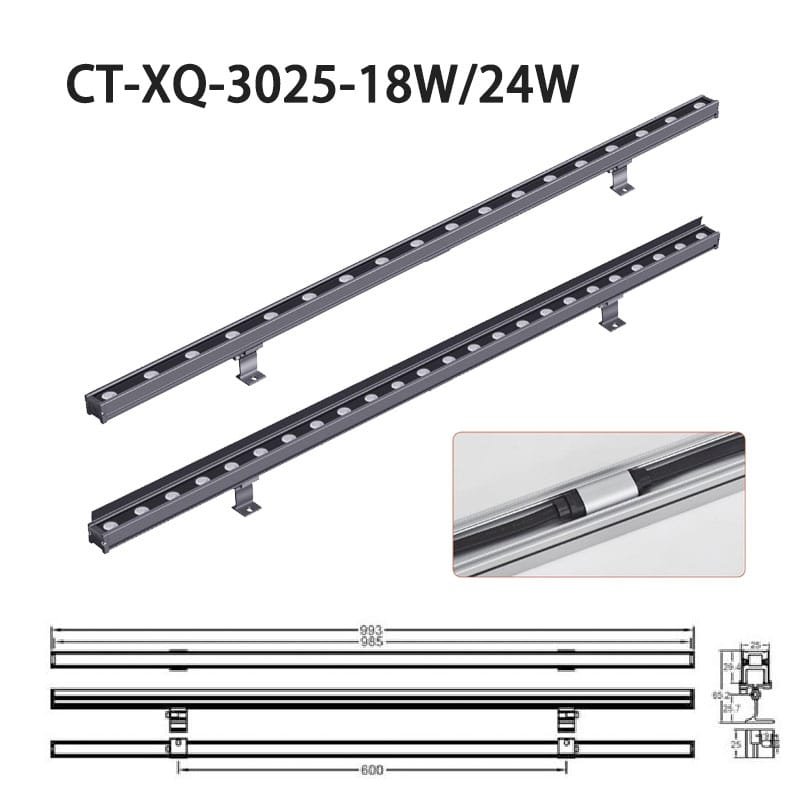

Model: CT-XQ-3025-18W/24W
Light source: OSRAM、PHILIPS、CREE
Conventional power: 18W/24W
Lamp size: L1000xW30xH25mm
Voltage: DC24V
Lamp life: 50000H
color: 2000K/3000K/4000K/6000K/RGB/RGBW
Colour effect: fullcolour, monochrome
Control mode: International standard DMX512
Protection grade: IP66
Environment temperature: -30C-+50C
Light angle: 30°/45°/10*60°/15*45°

Surface treatment: UV-resistant polyester powder, outdoor grade spray
Lamp material: Aluminum alloy body, 4mm tempered glass cover, IP67 waterproof, stainless steel screws
Applications: Wall-washing lighting for building exteriors, bridges, billboards, green landscapes, buildings, bars, dance halls, etc.

PRODUCT TECHNICAL PARAMETERS

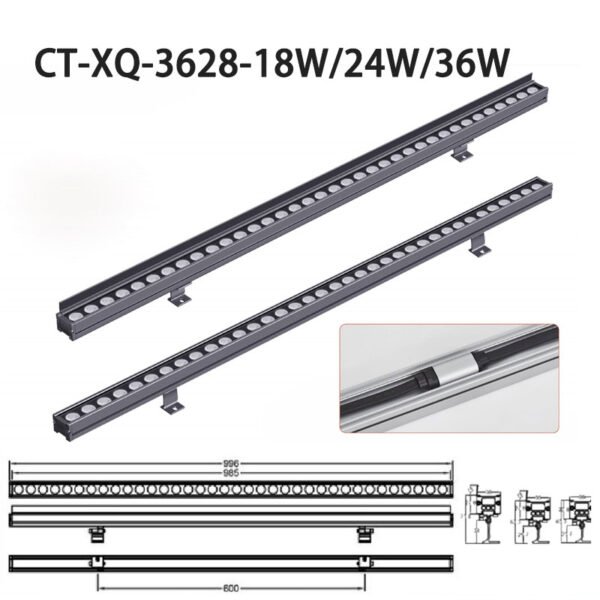

Model: CT-XQ-3628-18W/24W/36W
Light source: OSRAM、PHILIPS、CREE
Conventional power: 18W/24W/36W
Lamp size: L1000xW36xH28mm
Voltage: DC24V
Lamp life: 50000H
color: 2000K/3000K/4000K/6000K/RGB/RGBW
Colour effect: fullcolour, monochrome
Control mode: International standard DMX512
Protection grade: IP66
Environment temperature: -30C-+50C
Light angle: 30°/45°/10*60°/15*45°

Surface treatment: UV-resistant polyester powder, outdoor grade spray
Lamp material: Aluminum alloy body, 4mm tempered glass cover, IP67 waterproof, stainless steel screws
Applications: Wall-washing lighting for building exteriors, bridges, billboards, green landscapes, buildings, bars, dance halls, etc.

PRODUCT TECHNICAL PARAMETERS

Model: CT-XQ-3329-18W/24W/36W
Light source: OSRAM、PHILIPS、CREE
Conventional power: 18W/24W/36W
Lamp size: L1000xW33xH29mm
Voltage: DC24V
Lamp life: 50000H
color: 2000K/3000K/4000K/6000K
Colour effect: fullcolour, monochrome
Control mode: International standard DMX512
Protection grade: IP66
Environment temperature: -40C-+50C
Light angle: 30°/45°/10*60°/15*45°

Surface treatment: UV-resistant polyester powder, outdoor grade spray
Lamp material: Aluminum alloy body, 4mm tempered glass cover, IP67 waterproof, stainless steel screws
Applications: Wall-washing lighting for building exteriors, bridges, billboards, green landscapes, buildings, bars, dance halls, etc.

PRODUCT TECHNICAL PARAMETERS

Model: CT-XQ-5138-36W/48W
Light source: OSRAM、PHILIPS、CREE
Conventional power: 36W/48W
Lamp size: L1000xW51xH38mm
Voltage: AC220V/DC24V
Lamp life: 50000H
color: 2000K/3000K/4000K/6000K/RGB/RGBW
Colour effect: fullcolour, monochrome
Control mode: International standard DMX512
Protection grade: IP66
Environment temperature: -40C-+50C
Light angle: 6°9°15°30°/45°/10*60°

Surface treatment: UV-resistant polyester powder, outdoor grade spray
Lamp material: Aluminum alloy body, 4mm tempered glass cover, IP67 waterproof, stainless steel screws
Applications: Wall-washing lighting for building exteriors, bridges, billboards, green landscapes, buildings, bars, dance halls, etc.

PRODUCT TECHNICAL PARAMETERS

Model: CT-XQ-6331-48W/72W/96W
Light source: OSRAM、PHILIPS、CREE
Conventional power: 48W/72W/96W
Lamp size: L1000xW63xH31mm
Voltage: AC220V/DC24V
Lamp life: 50000H
color: 2000K/3000K/4000K/6000K/RGB/RGBW
Colour effect: fullcolour, monochrome
Control mode: International standard DMX512
Protection grade: IP66
Environment temperature: -40C-+50C
Light angle: 7°10°15°30°/60°/10*60°

Surface treatment: UV-resistant polyester powder, outdoor grade spray
Lamp material: Aluminum alloy body, 4mm tempered glass cover, IP67 waterproof, stainless steel screws
Applications: Wall-washing lighting for building exteriors, bridges, billboards, green landscapes, buildings, bars, dance halls, etc.

PRODUCT TECHNICAL PARAMETERS

Model: CT-XQ-9045-72W/96W/108W
Light source: OSRAM、PHILIPS、CREE
Conventional power: 72W/96W/108W
Lamp size: L1000xW90xH45mm
Voltage: AC220V/DC24V
Lamp life: 50000H
color: 2000K/3000K/4000K/6000K/RGB/RGBW
Colour effect: fullcolour, monochrome
Control mode: International standard DMX512
Protection grade: IP66
Environment temperature: -40C-+50C
Light angle: 6°9°15°30°/45°/10*60°

Surface treatment: UV-resistant polyester powder, outdoor grade spray
Lamp material: Aluminum alloy body, 4mm tempered glass cover, IP67 waterproof, stainless steel screws
Applications: Wall-washing lighting for building exteriors, bridges, billboards, green landscapes, buildings, bars, dance halls, etc.
