LED Lighting Buyer’s Guide: How to Correctly Choose Luminaire Wattage (W)

I. Moving Beyond Wattage: The Revolutionary Advantage of LEDs

In the era of traditional lighting (like incandescent or halogen), consumers relied on wattage (W) to estimate a bulb’s brightness: higher wattage meant brighter light. However, with the widespread adoption of LED (Light-Emitting Diode) technology, this conventional wisdom is obsolete.

1. Why Are LEDs So Energy Efficient?

The core advantage of LED luminaires lies in their exceptionally high energy conversion efficiency:

• High Efficacy: LEDs convert electrical energy into light energy far more efficiently than older technologies. This efficiency metric is known as Efficacy (Lumens Per Watt, lm/W).

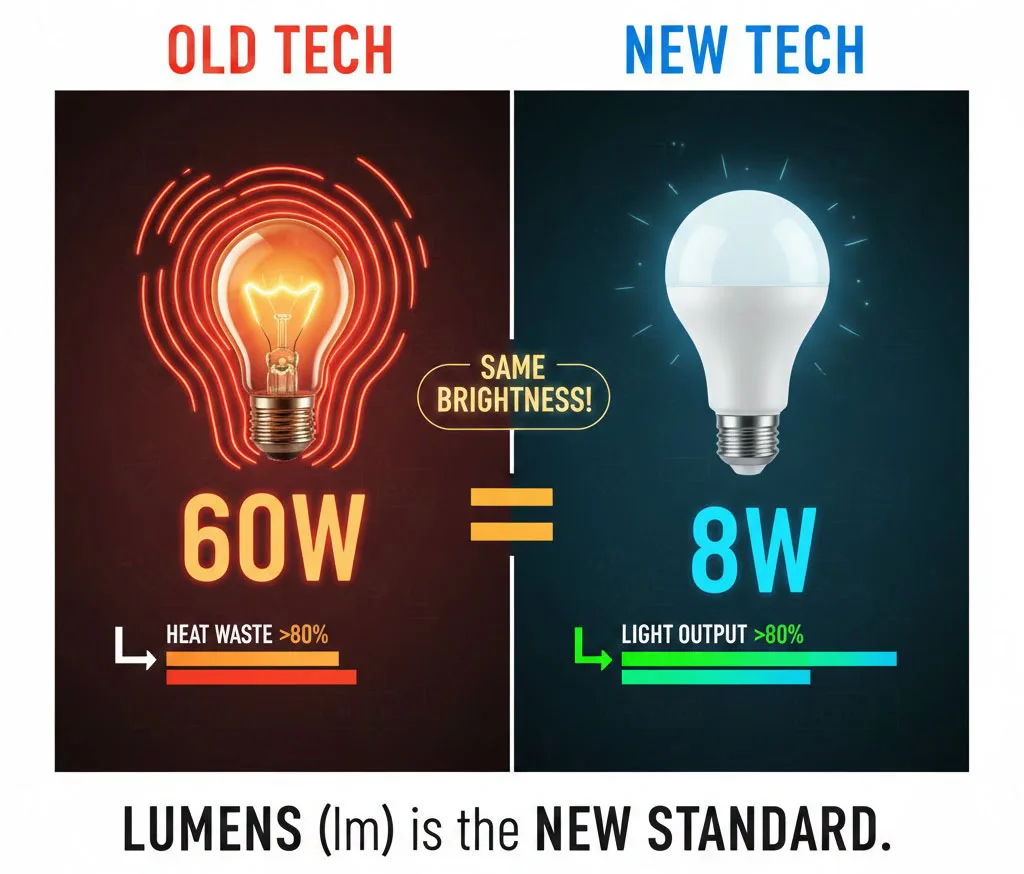

• Low Wattage, High Brightness: An 8W LED bulb can provide similar brightness (light output) to a 60W incandescent bulb. LEDs achieve required light levels with significantly lower power consumption.

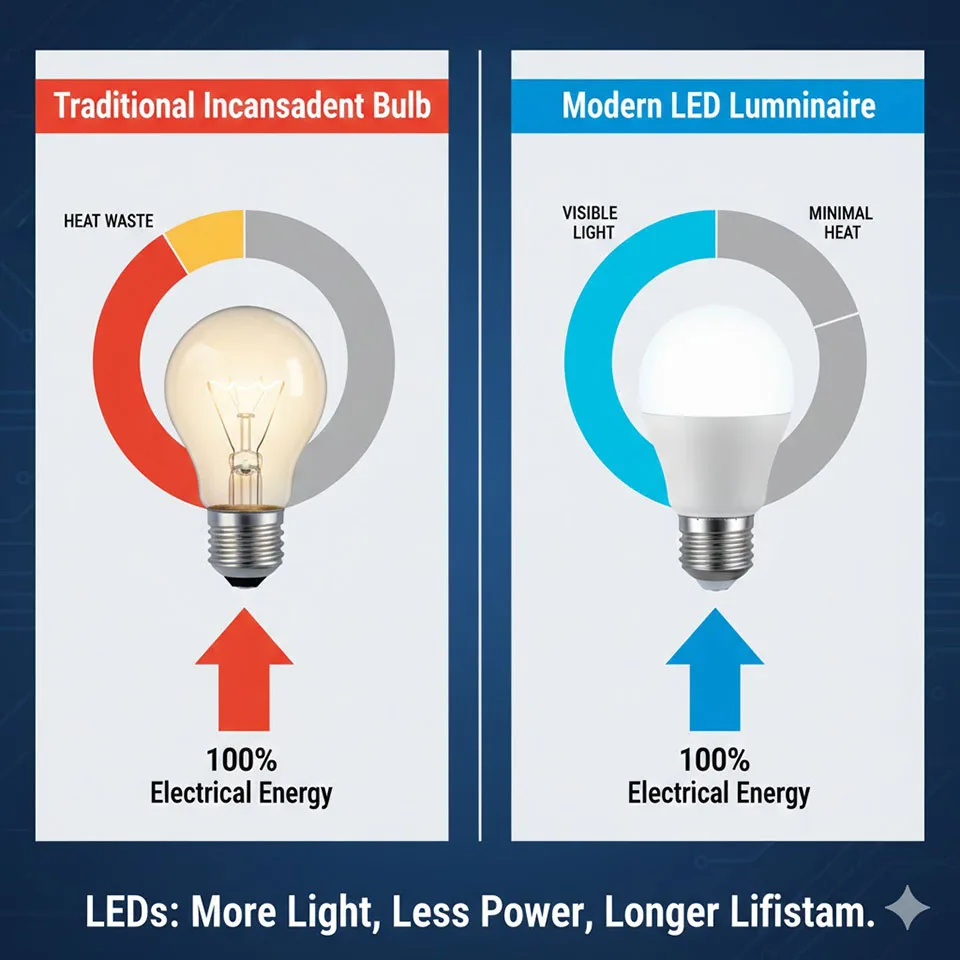

• Minimal Heat Loss: Traditional bulbs convert over 80% of electricity into wasted heat. LEDs convert most energy into visible light, drastically reducing energy waste.

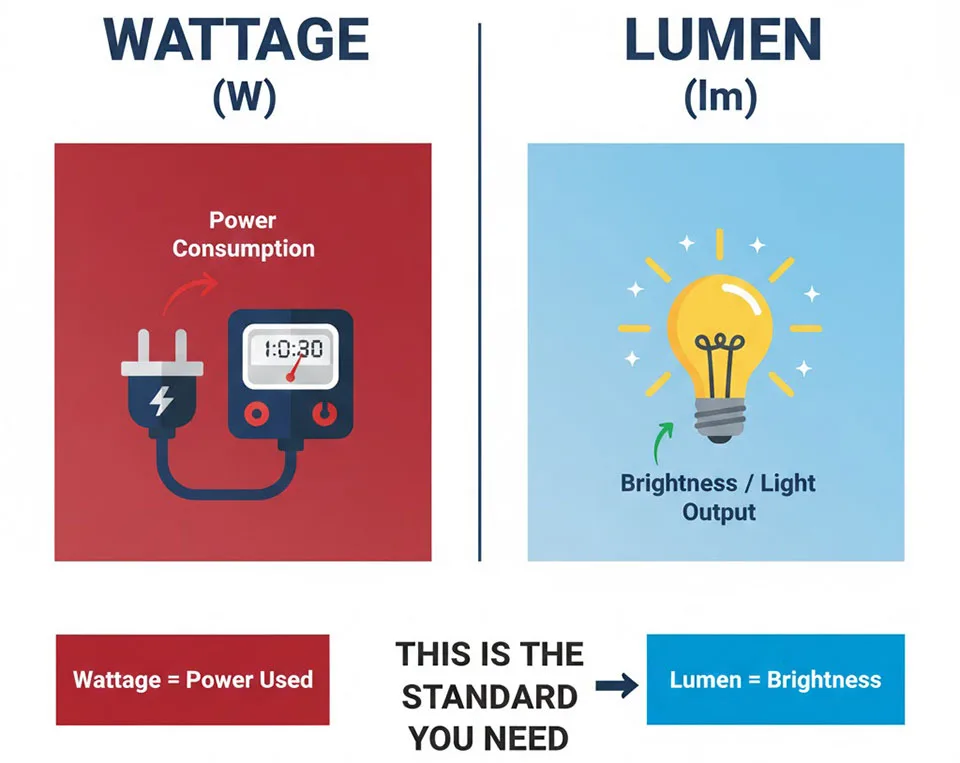

Conclusion: When selecting LED fixtures, Wattage (W) only represents power consumption, while Lumen (lm) is the true standard for measuring brightness.

II. How to Select the Correct LED Wattage: Focus on Lumens

Since wattage is no longer the sole determinant of brightness, follow these steps when choosing your LED luminaire:

Step 1: Determine the Required Light Output (Lumen)

The first step in selection is determining the required total light output (lumens) based on the room size and function.

Calculation Example: If a 10 square meter (m²) living room requires 200 Lux of illuminance, the total lumens needed is approximately 10 X 200 = 2000 lm.

Step 2: Evaluate the Luminaire’s Efficacy

The efficacy of different LED products varies significantly. High-quality, industrial-grade LED fixtures often achieve an efficacy of 130 lm/W or higher.

Required Wattage (W) = Total Lumens Needed (lm) / Luminaire Efficacy (lm/W)

• Case Comparison:
  • Standard LED (Efficacy 80 lm/W): To achieve 2000 lm, you need 2000 / 80 = 25 W
  • High-Efficiency LED (Efficacy 130 lm/W): To achieve 2000 lm, you only need 2000 / 130 ≈ 15.4W.

Step 3: Consider Beam Angle and Environment

• Beam Angle: Focused (narrow angle) fixtures provide higher effective illuminance, allowing for slightly lower wattage. Wide-angle (diffuse) fixtures require higher total lumens.
• Environmental Factors: For fixtures like high bay lights or street lights, which project light over long distances, you need to consider the professional optical design and the wattage to ensure the stability of the driver and thermal management systems, in addition to high lumen output.

Summary: The Shift from Power Consumption to Efficacy

When purchasing LED luminaires, always prioritize the Lumen (lm) value listed on the packaging, rather than the traditional wattage.

• Goal: Determine the lumens you require.
• Selection: Look for the product that meets your lumen requirements while consuming the lowest wattage (power consumption).

Choosing high-efficacy LED lighting is the best way to achieve maximum energy savings and the lowest operational costs.
