High Bay Light -1
Our company is a specialized manufacturer of all kinds of LED lighting items. LED lamps offer efficient, long-lasting illumination with low energy consumption. They are versatile and widely used in various lighting applications.
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
application scene

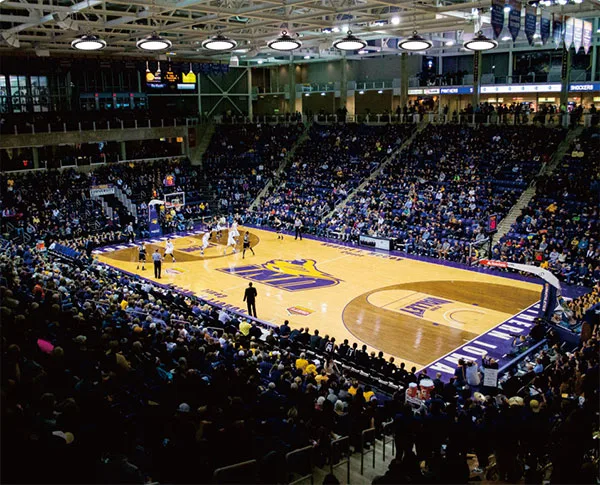

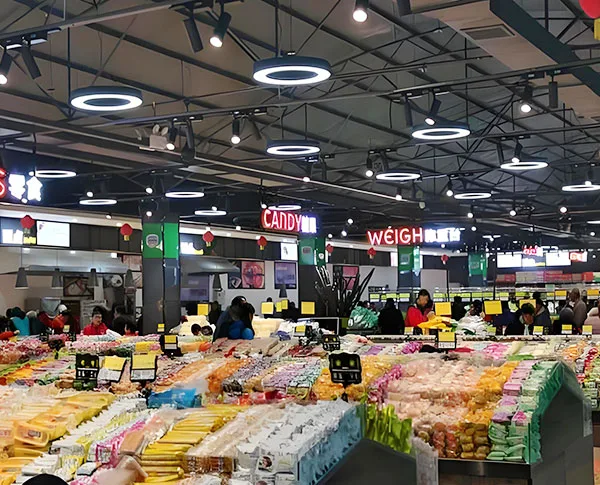

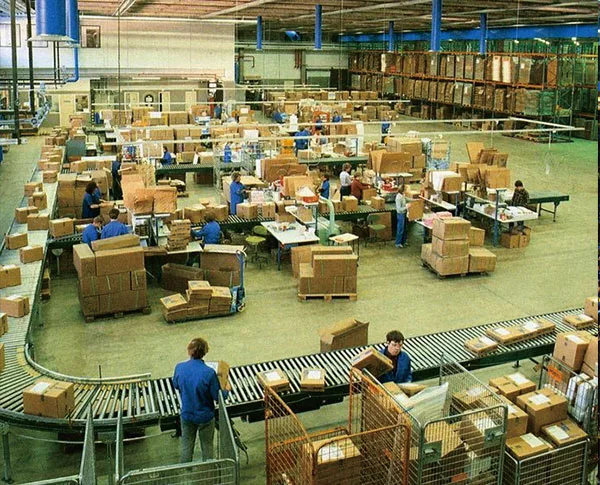

 indoor-gymnasiums |  logistics-centers |  Supermarkets |

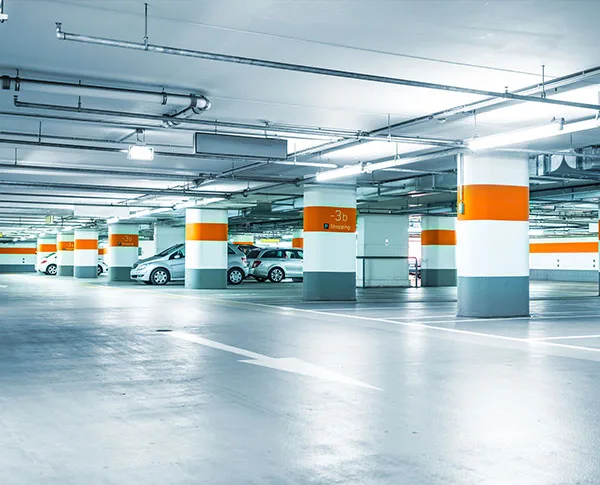

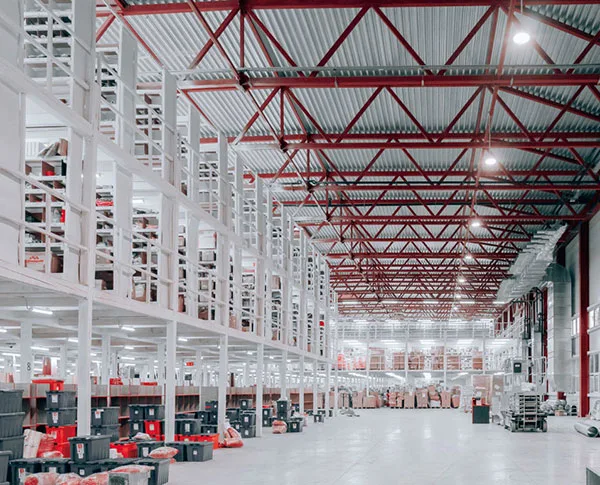

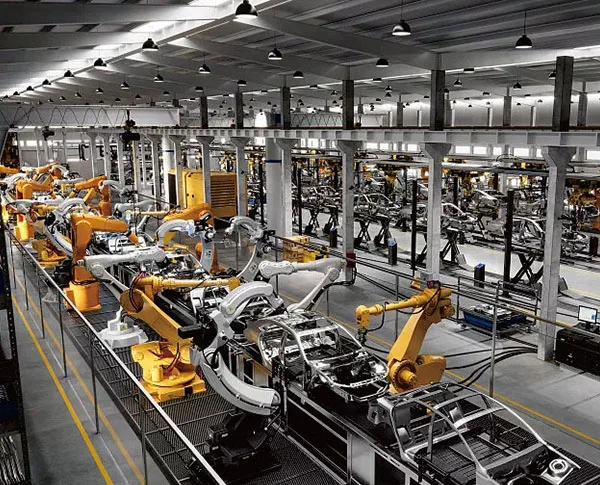

 underground parking lots |  warehouse |  workshops |
Parameter Description：

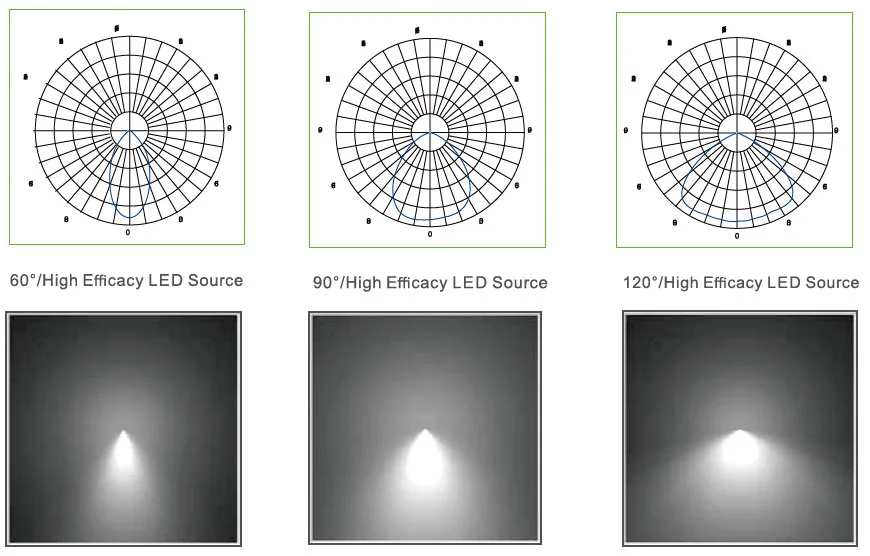

Distribution Curve Flux

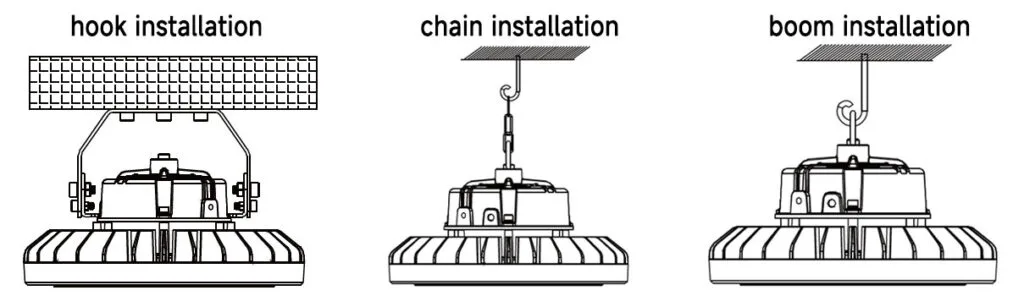

Installation Method

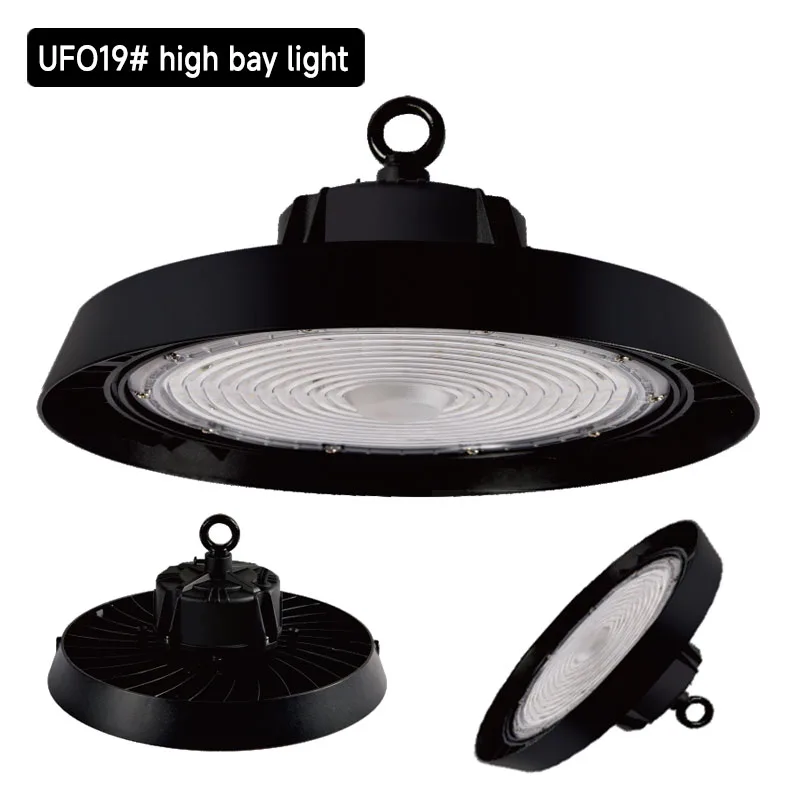

HIGH BAY LIGHT

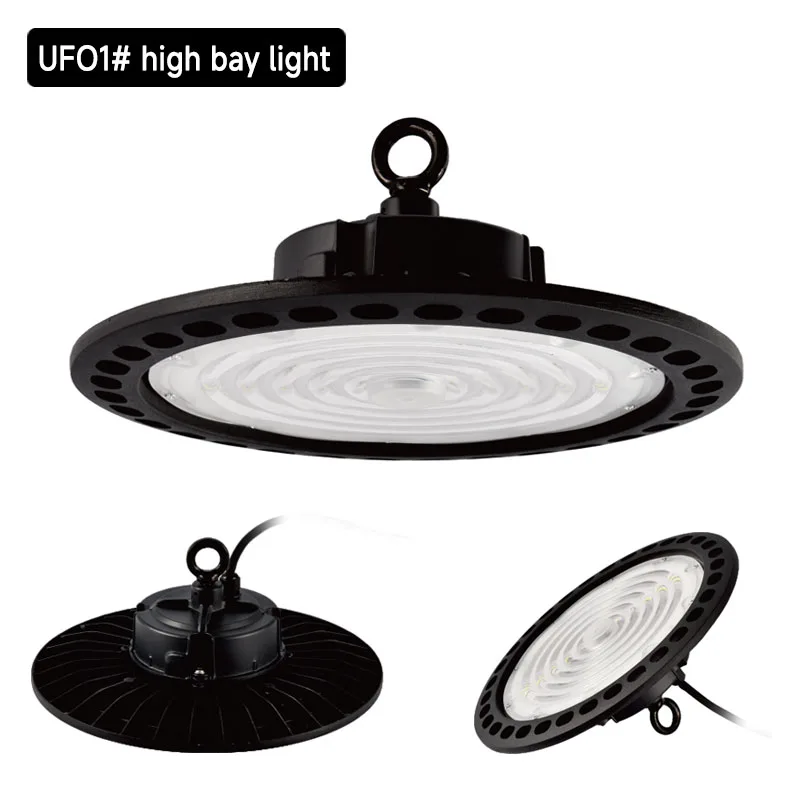

Product Features
- Adopting SAN’AN chip as lighting sources with high brightness, low light failure, long life span.
- Using independent professional customized driver,with over temperature protection, high conversion efficiency, high power factor, anti-industrial surge, anti-interference and other characteristics.
- Using high quality die-casting aluminum,with high thermal conductivity, the heat is quickly exported from the outside to balance the temperature inside and outside the lamp, so as to reduce the temperature difference and reduce light decay.
- Adopting optical PC lens, lK08 anti-collision grade, UV resistance, 90% transmittance, Two optical beam angle for option: 90° and 110°.
- Chain installation, and boom installation for option.
- Can be equipped with lampshade.
Parameter
| MODEL | POWER | VOLTAGE | PF | DRIVER BRAND | CHIPS BRAND | CRI | CCT | EFFICACY | LIGHT DISTRIBUTION | BEAM ANGLE | LAMP SIZE | LIFE SPAN | IP | IK | N.W | G.W |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UFO1-100 | 100 | 135-265 | 0.95 | mingying | sanan3030 | 80 | 3000K 4000K 5500K 6500K | ≥120 | Lens | 90° | Φ240*80 | 10000 | IP65 | IK08 | 1.3 | 1.6 |
| UFO1-150 | 150 | Φ290*90 | 2.2 | 2.5 | ||||||||||||
| UFO1-200 | 200 | Φ320*90 | 2.9 | 3.1 | ||||||||||||
| UFO1-240 | 240 | Φ320*90 | 2.2 | 2.5 |
Product Features
- Adopting LUMlLEDS LEDs as lighting sources with high brightness, low light failure, long life span.
- Using international well-known brand driver,with over temperature protection, high conversion efficiency, high power factor, anti-industrial surge, anti-interference and other characteristics.
- Using high quality die-casting aluminum,with high thermal conductivity, the heat is quickly exported from the outside to balance the temperature inside and outside the lamp, so as to reduce the temperature difference and reduce light decay.
- Adopting optical PC lens, lK08 anti-collision grade, UV resistance, 90% transmittance, beam angle for option: 90°.
- Chain installation, and boom installation for option.
- Can be equipped with lampshade.

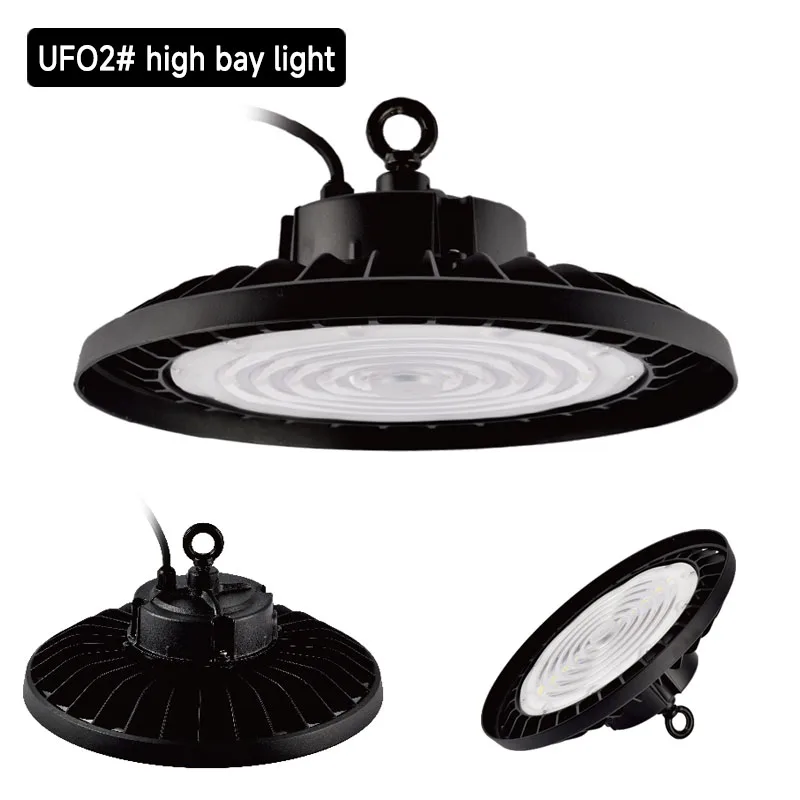

Parameter
| MODEL | POWER | VOLTAGE(V) | PF | DRIVER BRAND | CHIPS BRAND | CRI | CCT | EFFICACY | LIGHT DISTRIBUTION | BEAM ANGLE | LAMP SIZE | LIFE SPAN | IP | IK | N.W | G.W |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UFO2-100 | 100 | 90-265 | 0.95 | mingying | PHILIPS LUMILEDS | 80 | 3000K 4000K 5500K 6500K | ≥130 | Lens | 90° | Φ270*95 | 30000 | IP65 | IK08 | 1.48 | 1.78 |
| UFO2-150 | 150 | 90-266 | Φ308*117 | 2.07 | 2.4 | |||||||||||
| UFO2-200 | 200 | 90-267 | Φ354*122 | 2.88 | 3.3 | |||||||||||
| UFO2-240 | 240 | 90-267 | Φ354*122 | 2.88 | 3.3 |

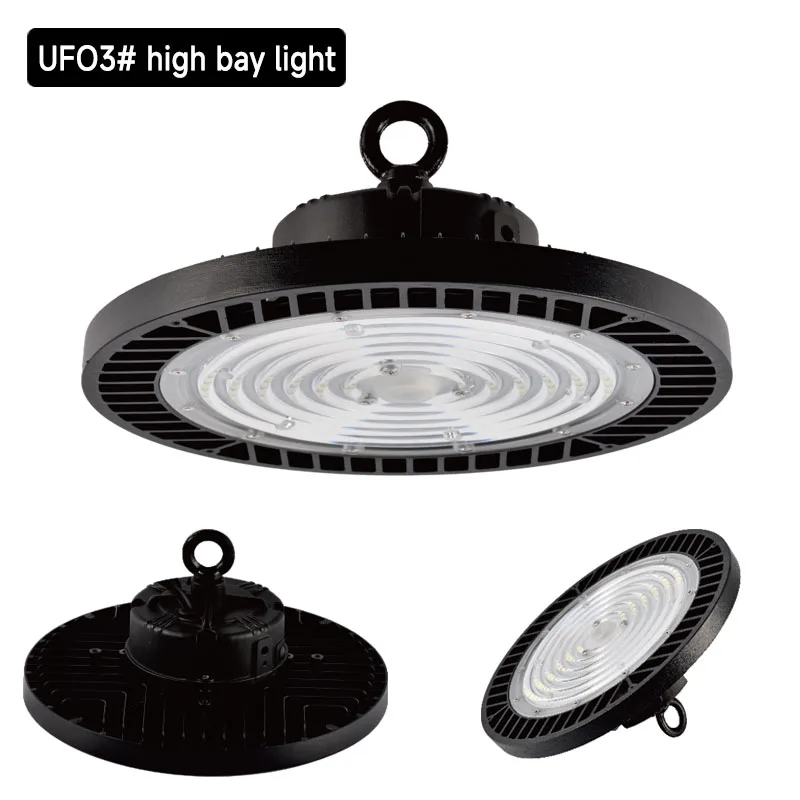

Product Features
- Adopting LUMlLEDS LEDs as lighting sources with high brightness, low light failure, long life span.
- Using international well-known brand driver,with over temperature protection, high conversion efficiency, high power factor, anti-industrial surge, anti-interference and other characteristics.
- Using high quality die-casting aluminum,with high thermal conductivity, the heat is quickly exported from the outside to balance the temperature inside and outside the lamp, so as to reduce the temperature difference and reduce light decay.
- Adopting optical PC lens, lK08 anti-collision grade, UV resistance, 90% transmittance, beam angle for option: 90°.
- Chain installation, and boom installation for option.
- Can be equipped with lampshade.
Parameter
| MODEL | POWER | VOLTAGE(V) | PF | DRIVER BRAND | DRIVER CERT | CHIPS BRAND | CRI | CCT | EFFICACY | LIGHT DISTRIBUTION | BEAM ANGLE | LAMP SIZE | LIFE SPAN | IP | IK | N.W | G.W |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UFO3-100 | 100 | 90-305 | 0.95 | philips | UL/CE/CB/CCC | PHILIPS LUMILEDS | 80 | 3000K 4000K 5500K 6500K | ≥130 | Lens | 90° | Φ250*105 | 50000 | IP65 | IK08 | 1.48 | 1.78 |
| UFO3-150 | 150 | Φ300*105 | 2.07 | 2.4 | |||||||||||||
| UFO3-200 | 200 | Φ345*105 | 2.88 | 3.3 | |||||||||||||
| UFO3-240 | 240 | Φ345*105 | 2.88 | 3.3 |

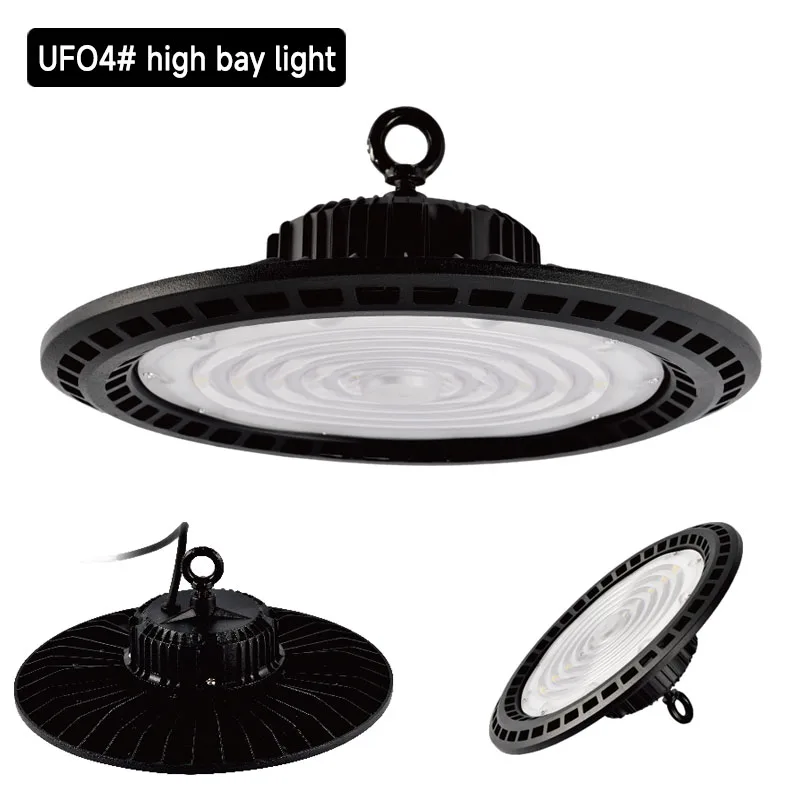

Product Features
- Adopting SAN’AN chip as lighting sources with high brightness, low light failure, long life span.
- Using independent professional customized driver,with over temperature protection, high conversion efficiency, high power factor, anti-industrial surge, anti-interference and other characteristics.
- Using high quality die-casting aluminum,with high thermal conductivity, the heat is quickly exported from the outside to balance the temperature inside and outside the lamp, so as to reduce the temperature difference and reduce light decay.
- Adopting optical PC lens, lK08 anti-collision grade, UV resistance, 90% transmittance, Two optical beam angle for option: 90° and 110°.
- Hook installation, chain installation, and boom installation for option.
Parameter
| MODEL | POWER | VOLTAGE(V) | PF | DRIVER BRAND | CHIPS BRAND | CRI | CCT | EFFICACY | LIGHT DISTRIBUTION | BEAM ANGLE | LAMP SIZE | LIFE SPAN | IP | IK | N.W | G.W |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UFO4-100 | 100 | 90-265 | 0.95 | mingying | SANAN3030 | 80 | 3000K 4000K 5500K 6500K | ≥120 | Lens | 90° | Φ250*90 | 12000 | IP65 | IK08 | 1.3 | 1.6 |
| UFO4-150 | 150 | Φ305*90 | 2.2 | 2.5 | ||||||||||||
| UFO4-200 | 200 | Φ360*90 | 2.9 | 3.1 | ||||||||||||
| UFO4-300 | 300 | Φ405*90 | 2.9 | 3.1 |

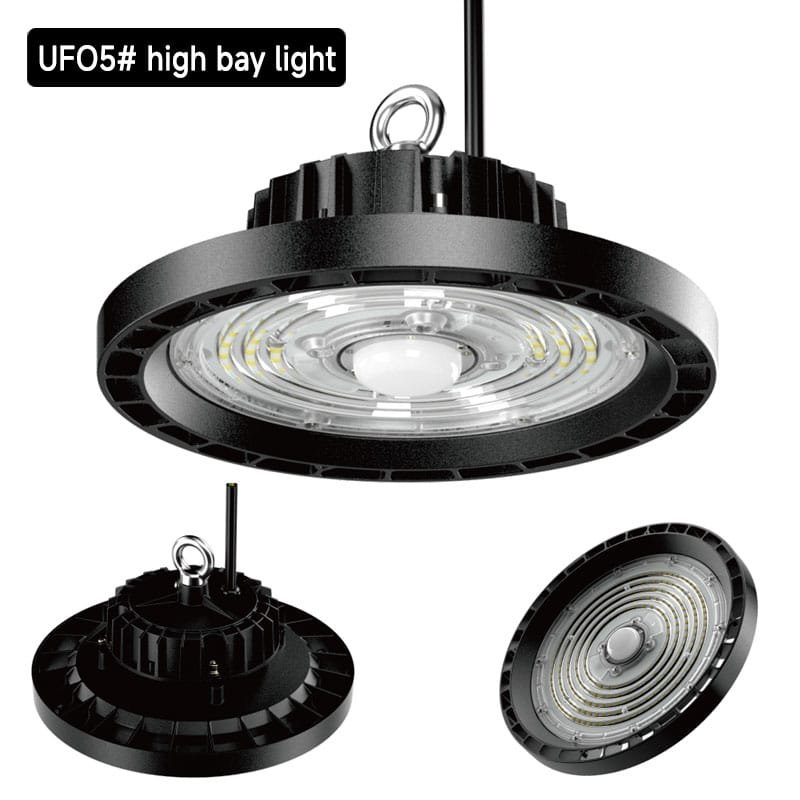

Product Features
- Adopting LUMlLEDS LEDs as lighting sources with high brightness, low light failure, long life span.
- Using international well-known brand driver,with over temperature protection, high conversion efficiency, high power factor, anti-industrial surge, anti-interference and other characteristics.
- Using high quality die-casting aluminum,with high thermal conductivity, the heat is quickly exported from the outside to balance the temperature inside and outside the lamp, so as to reduce the temperature difference and reduce light decay.
- Adopting optical PC lens, lK08 anti-collision grade, UV resistance, 90% transmittance, beam angle for option: 90°.
- Chain installation, and boom installation for option.
- Can be equipped with lampshade.
Parameter
| MODEL | POWER | VOLTAGE(V) | PF | DRIVER BRAND | DRIVER CERT | CHIPS BRAND | CRI | CCT | EFFICACY | LIGHT DISTRIBUTION | BEAM ANGLE | LAMP SIZE | LIFE SPAN | IP | IK | N.W | G.W |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UFO5-100 | 100 | 90-265 | 0.95 | New Energy/ZhiTuo | UL/CE/CB/CCC | PHILIPS LUMILEDS | 80 | 3000K 4000K 5500K 6500K | ≥150 | Lens | 90° | Φ240*90 | 20000 | IP65 | IK08 | 1.38 | 1.68 |
| UFO5-150 | 150 | Φ295*115 | 1.94 | 2.25 | |||||||||||||
| UFO5-200 | 200 | Φ335*115 | 2.72 | 3.1 | |||||||||||||
| UFO5-200 | 200 | Φ335*115 | 2.72 | 3.1 |
Product Features
- Adopting LUMlLEDS LEDs as lighting sources with high brightness, low light failure, long life span.
- Using international well-known brand driver,with over temperature protection, high conversion efficiency, high power factor, anti-industrial surge, anti-interference and other characteristics.
- Using high quality die-casting aluminum,with high thermal conductivity, the heat is quickly exported from the outside to balance the temperature inside and outside the lamp, so as to reduce the temperature difference and reduce light decay.
- Adopting optical PC lens, lK08 anti-collision grade, UV resistance, 90% transmittance, beam angle for option: 90°.
- Chain installation, and boom installation for option.

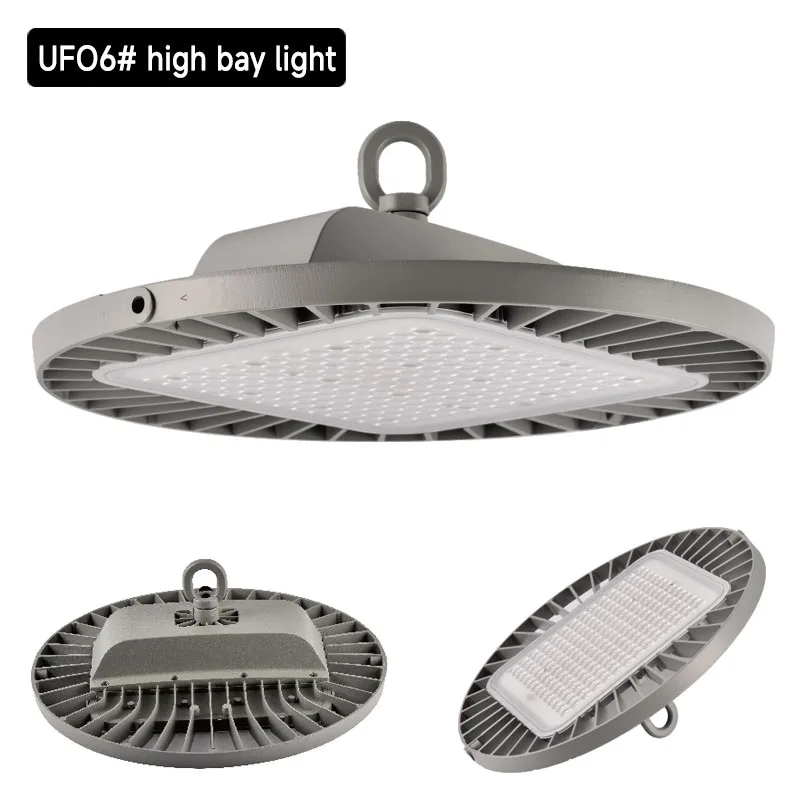

Parameter
| MODEL | POWER | VOLTAGE(V) | PF | DRIVER BRAND | DRIVER CERT | CHIPS BRAND | CRI | CCT | EFFICACY | LIGHT DISTRIBUTION | BEAM ANGLE | LAMP SIZE | LIFE SPAN | IP | IK | N.W | G.W |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UFO6-100 | 100 | 90-305 | 0.95 | philips / inventronics | UL/CE/CB/CCC | PHILIPS LUMILEDS | 80 | 3000K 4000K 5500K 6500K | ≥130 | Lens | 90° | Φ285*90 | 50000 | IP65 | IK08 | 2.89 | 3.6 |
| UFO6-150 | 150 | Φ420*90 | 3.95 | 4.55 | |||||||||||||
| UFO6-200 | 200 | Φ460*100 | 4.93 | 5.65 | |||||||||||||
| UFO6-240 | 240 | Φ460*100 | 4.93 | 5.65 |
Product Features
- Adopting LUMlLEDS LEDs as lighting sources with high brightness, low light failure, long life span.
- Using international well-known brand driver,with over temperature protection, high conversion efficiency, high power factor, anti-industrial surge, anti-interference and other characteristics.
- Using high quality die-casting aluminum,with high thermal conductivity, the heat is quickly exported from the outside to balance the temperature inside and outside the lamp, so as to reduce the temperature difference and reduce light decay.
- Adopting optical PC lens, lK08 anti-collision grade, UV resistance, 90% transmittance, beam angle for option: 90°.
- Hook installation,chain installation, and boom installation for option.

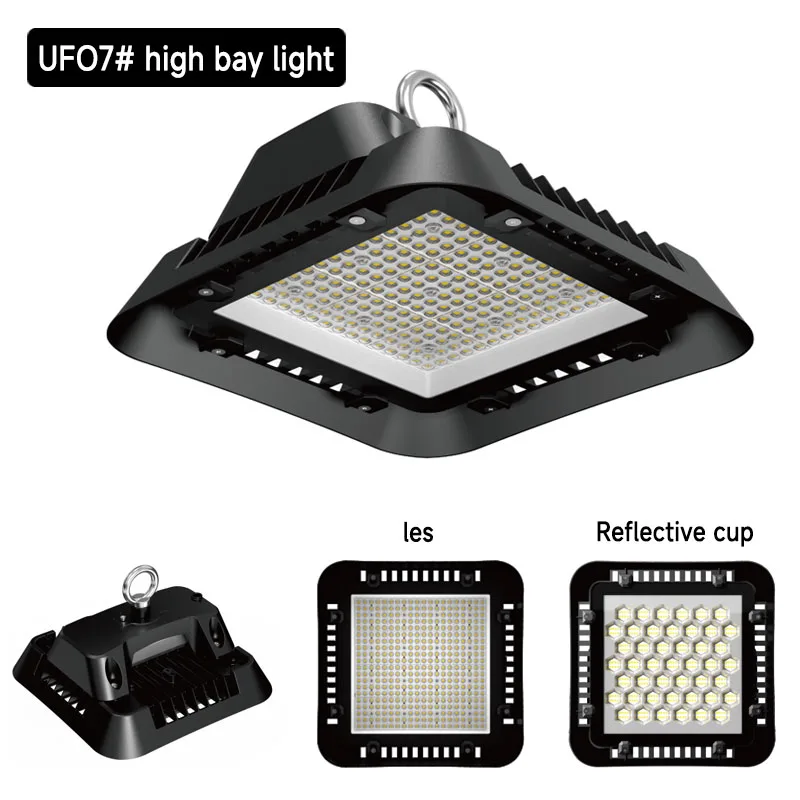

Parameter
| MODEL | POWER | VOLTAGE(V) | PF | DRIVER BRAND | DRIVER CERT | CHIPS BRAND | CRI | CCT | EFFICACY | LIGHT DISTRIBUTION | BEAM ANGLE | LAMP SIZE | LIFE SPAN | IP | IK | N.W | G.W |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| UFO7-100 | 100 | 90-305 | 0.95 | philips/ inventronics | UL/CE/CB/CCC | PHILIPS LUMILEDS | 80 | 3000K 4000K 5500K 6500K | ≥130 | Lens | 60° 90° 120° | 263*263*45 | 50000 | IP65 | IK08 | 2.5 | 2.75 |
| UFO7-150 | 150 | 314*314*45 | 2.98 | 3.4 | |||||||||||||
| UFO7-200 | 200 | 314*314*45 | 2.98 | 3.4 | |||||||||||||

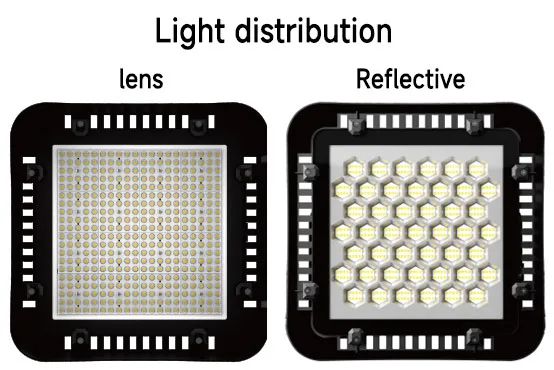

| UFO7-100 | 100 | Zhihe | Reflective cup | 263*263*45 | 2.5 | 2.75 | |||||||||||
| UFO7-150 | 150 | 314*314*45 | 2.98 | 3.4 | |||||||||||||
| UFO7-200 | 200 | 314*314*45 | 2.98 | 3.4 |
