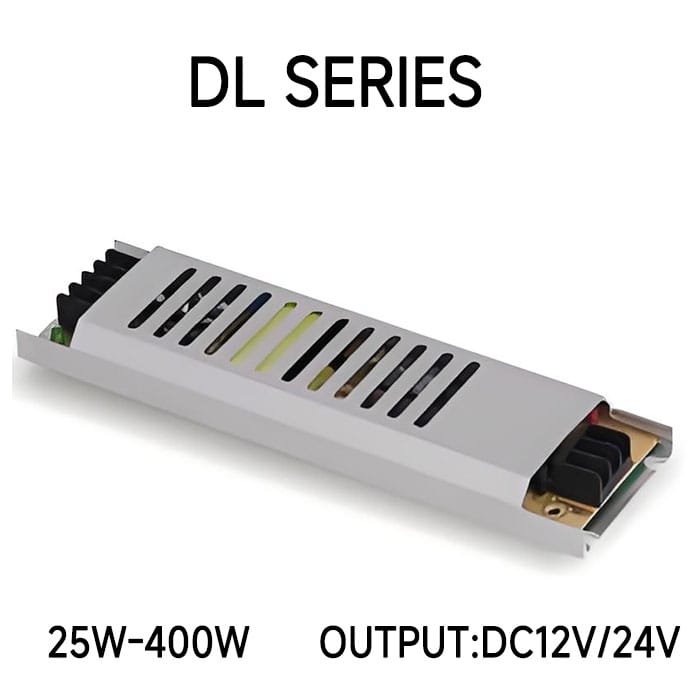

DL series – IP20 ultra-thin power-25w~400w
Our company is a specialized manufacturer of all kinds of LED lighting items. LED lamps offer efficient, long-lasting illumination with low energy consumption. They are versatile and widely used in various lighting applications.
- Satisfaction Guaranteed
- No Hassle Refunds
- Secure Payments
Description
FEATURES
- Especially designed for high -power advertising light box, ultra-thin, and doesn’t block the light;
- Wide input voltage range,suitable for various grid environment;
- Wide range of working environment temperature: -20℃~+50℃;
- With built-in cooling fan;
- Built -in complete functions of over current protection and short circuit protection can prevent wire short circuit fire;
- Used totally new branded components, the quality can be guaranteed;
- 100% full load aging test at high temperature with low failure rate and high reliability.
SPECIFICATION
Unless explicitly stated, all data is measured under 25℃ and 230VAC
Output: 12V/24V
Overload protection: Available Automatically recover and work after elimination of overload fault
Output short circuit protection: Available Automatically recover and work after elimination of overload fault
Over voltage protection: Available it can prevent power supply damaged or board burned caused by overhigh voltage
Withstand voltage: IP-OP:1500Vac; IP-PE:1500Vac; OP-PE:500Vac
Working temperature: -20℃~50℃
Start-up time: <3Sec
Safety standards: Comply with the nation standard
EMC standards: Designed according to the industry standard
Connection: 9.5mm screw terminal
PRODUCT PARAMETERS TABLE
| MODEL | POWER | INPUT | OUTPUT | CURRENT | POWER SIZE(cm) | PACKING SIZE(cm) | PCS/CTN | N.W | G.W |
|---|---|---|---|---|---|---|---|---|---|
| CT-DL-LD-002 | 25W | AC85-265V | DC12V/24V | 2A/1A | 16*1.8*1.8 | 46*28.5*25 | 200pcs | 9kg | 10kg |
| CT-DL-LD-003 | 36W | AC85-265V | DC12V/24V | 3A/1.5A | 25*1.8*1.8 | 46*28.5*25 | 200pcs | 15kg | 16kg |
| CT-DL-LD-005 | 60W | AC85-265V | DC12V/24V | 5A/2.5A | 30.5*1.8*1.8 | 46*28.5*25 | 200pcs | 19kg | 20kg |
| CT-DL-LD-005B | 60W | AC85-265V | DC12V/24V | 5A/2.5A | 17*5.2*2 | 46*28.5*25 | 100pcs | 16kg | 17kg |
| CT-DL-LD-010 | 100W | AC85-265V | DC12V/24V | 8.3A/4.2A | 19.5*5.2*2 | 46*28.5*25 | 90pcs | 18kg | 19kg |
| CT-DL-LD-006 | 120W | AC85-265V | DC12V/24V | 10A/5A | 22.5*4.8*2 | 46*28.5*25 | 80pcs | 17kg | 18kg |
| CT-DL-LD-012 | 150W | AC85-265V | DC12V/24V | 12.5A/6.25A | 25*4.8*2.2 | 46*28.5*25 | 68pcs | 18kg | 19kg |
| CT-DL-LD-007 | 200W | AC175-265V | DC12V/24V | 16.7A/8.3A | 30.5*5.2*2.2 | 33*29*25 | 40pcs | 13kg | 14kg |
| CT-DL-LD-008 | 250W | AC175-265V | DC12V/24V | 20.8A/10.4A | 30.5*5.2*2.2 | 33*29*25 | 40pcs | 14kg | 15kg |
| CT-DL-LD-013Fan | 300W | AC175-265V | DC12V/24V | 25A/12.5A | 30.5*5.2*2.2 | 33*29*25 | 40pcs | 14kg | 15kg |
| CT-DL-LD-009Fan | 360W | AC175-265V | DC12V/24V | 30A/15A | 30.5*5.2*2.2 | 33*29*25 | 40pcs | 14kg | 15kg |
| CT-DL-LD-014Fan | 400W | AC175-265V | DC12V/24V | 33A/16.5A | 38.5*5.2*2 | 46*29*25 | 40pcs | 18kg | 19kg |
